KXL-923 Waterproof Limit Switch with Metal Spring Rod
Model:
KXL-923
Overview
Designed for efficient one-side actuation at the operating head. Features highly precise actuation angles for accurate control.Boasts a high protection rating of IP67 (dust-tight and water-resistant). Delivers high load capacity and low contact resistance. It ensures stable switching, excellent arc extinction, long service life, and top-tier safety.
Certifications
ISO9001
CE
CCC
UL
Technical Specifications
| Contact Form | 1N/O +1N/C |
| Contact Material | Ag alloy |
| Rated Current | 12A 250VAC · Resistance load |
| Insulation Resistance | Min.100MΩ500VDC Insulation resistance |
| Contact Resistance | Max.15mΩ |
| Surge Current (No Contacts) | Max 20A |
| Internal Voltage Between Terminals | 1,000VAC 50/60Hz 1 Minute |
| Internal Voltage (Terminal to Non-Charging Parts) | 2,200VAC·50/60Hz 1 Minute |
| Mechanical Life | Min. 10,000,000 |
| Electrical Life | Min.1.000,000 |
| Vibration Resistance | 10~55Hz Dual wave length 1.5mm |
| Degree of Protection | IP67 |
| Ambient Temperature | -10~+80°C·(with no icing) |
| Ambient Humidity | Max.95%RH |

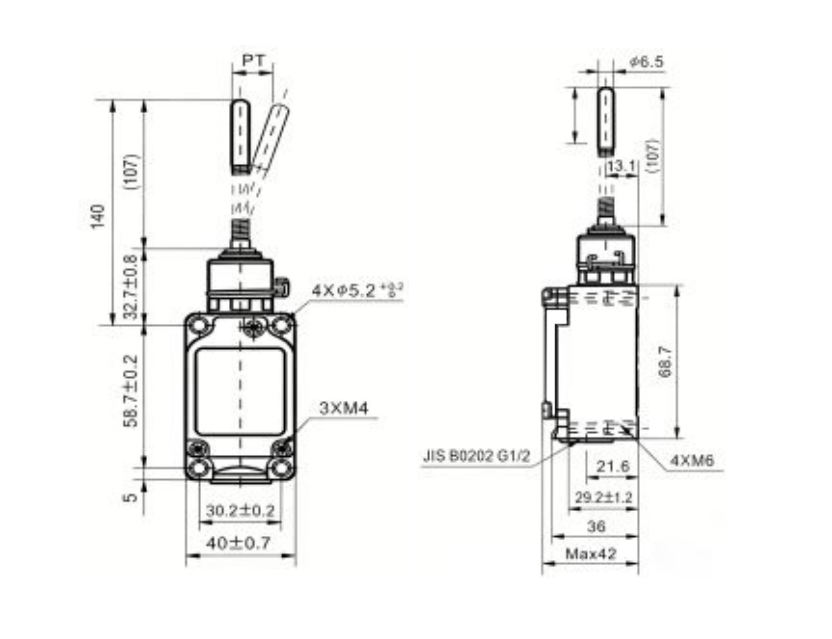

Product Dimensions
