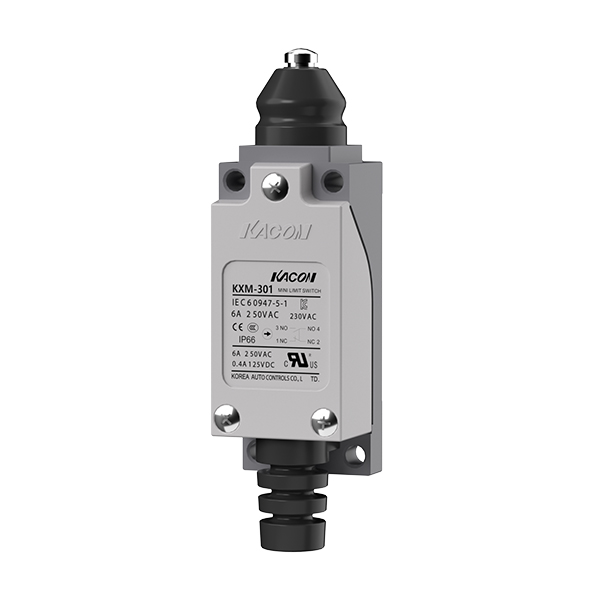

KXM-301 General-Purpose Limit Switch with Push Plunger
Model:
KXM-301
Overview
Universal Miniature Limit Switch .Positive Opening (NC) for Safety. Dual-Spring Mechanism Ensures Long Life. 24K Gold Plated Contacts: Low Resistance & Stable Performance.
Certifications
ISO9001
CE
CCC
UL
Technical Specifications
| Contact Form | 1N/O +1N/C |
| Contact Material | Ag alloy/24K Au Plate |
| Rated Current | 6A 250VAC · Resistance load |
| Insulation Resistance | Min.100MΩ500VDC Insulation resistance |
| Contact Resistance | Max.25mΩ |
| Surge Current (No Contacts) | Max15A |
| Internal Voltage Between Terminals | 1,000VAC 50/60Hz 1 Minute |
| Internal Voltage (Terminal to Non-Charging Parts) | 1,500VAC·50/60Hz 1 Minute |
| Mechanical Life | Min. 10,000,000 |
| Electrical Life | Min.300,000 |
| Vibration Resistance | 10~55Hz Dual wave length 1.5mm |
| Degree of Protection | IP66 |
| Ambient Temperature | -20~+60°C·(with no icing) |
| Ambient Humidity | Max.90%RH |

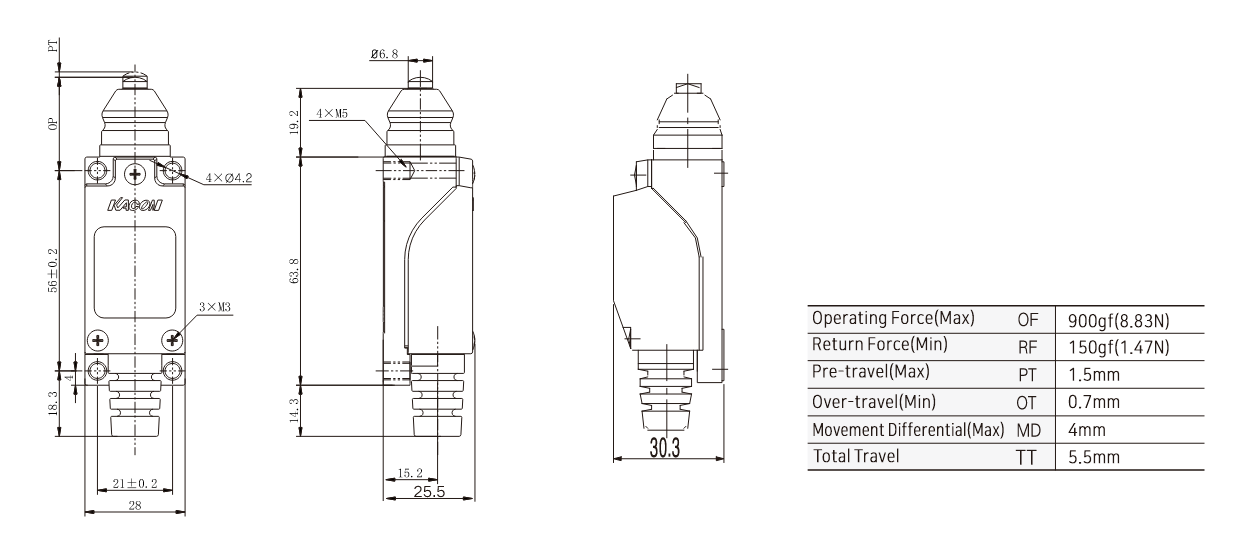

Product Dimensions
