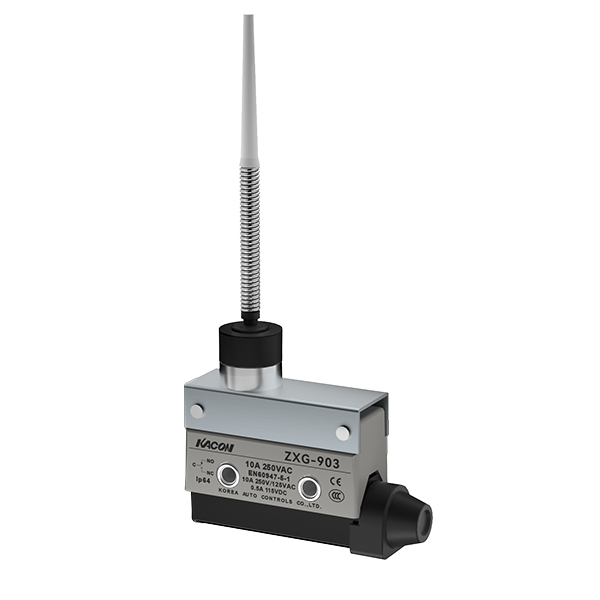

ZXG-903 Small Enclosed Limit Switch with Spring Rod-Plastic Tip
Model:
ZXG-903
Overview
Universal Best-Selling Miniature Limit Switch .Positive Opening (NC) for Safety. Dual-Spring Mechanism Ensures Long Life. Dual-Spring Mechanism Ensures Long Life. 24K Gold Plated Contacts: Low Resistance & Stable Performance.
Certifications
ISO9001
CE
CCC
Technical Specifications
| Contact Form | 1N/O +1N/C |
| Contact Material | Ag alloy/24K Au Plate |
| Rated Current | 10A |
| Insulation Resistance | Min.100MΩ500VDC Insulation resistance |
| Contact Resistance | Max.50mΩ |
| Surge Current (No Contacts) | Max 15A |
| Internal Voltage Between Terminals | 1,000VAC 5·0/60Hz 1 Minute |
| Internal Voltage (Terminal to Non-Charging Parts) | 2,200VAC·50/60Hz 1 Minute |
| Mechanical Life | Min. 10,000,000 |
| Electrical Life | Min.500,000 |
| Vibration Resistance | 10~55Hz Dual wave length 1.5mm |
| Degree of Protection | IP65 |
| Ambient Temperature | -10~+80°C·(with no icing) |
| Ambient Humidity | 35%~95% RH |

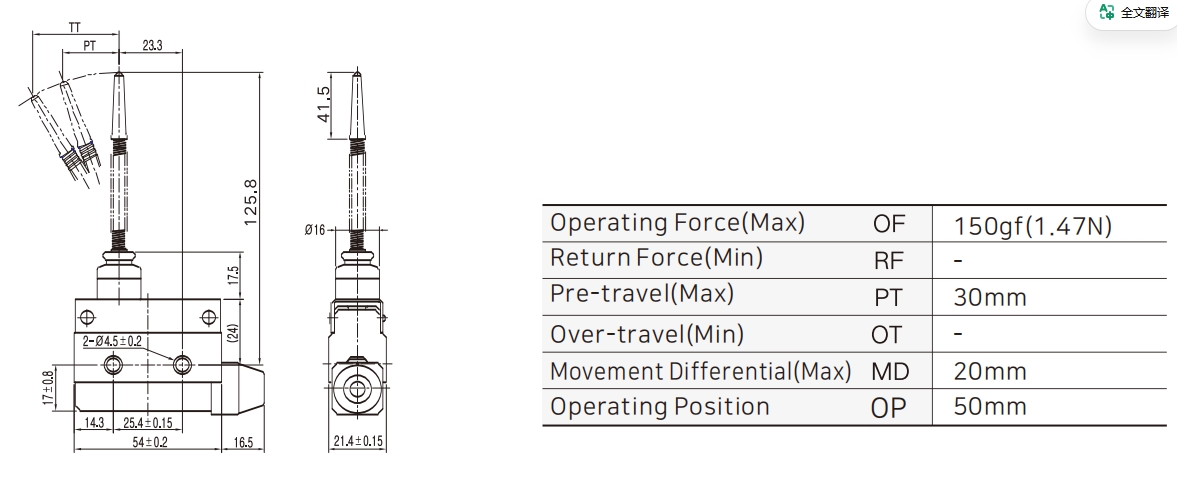

Product Dimensions
