KACON KXM Limit Switch
A universal, best-selling miniature limit switch engineered for positive opening safety, long mechanical life and stable performance across industrial automation, packaging, and machinery applications.

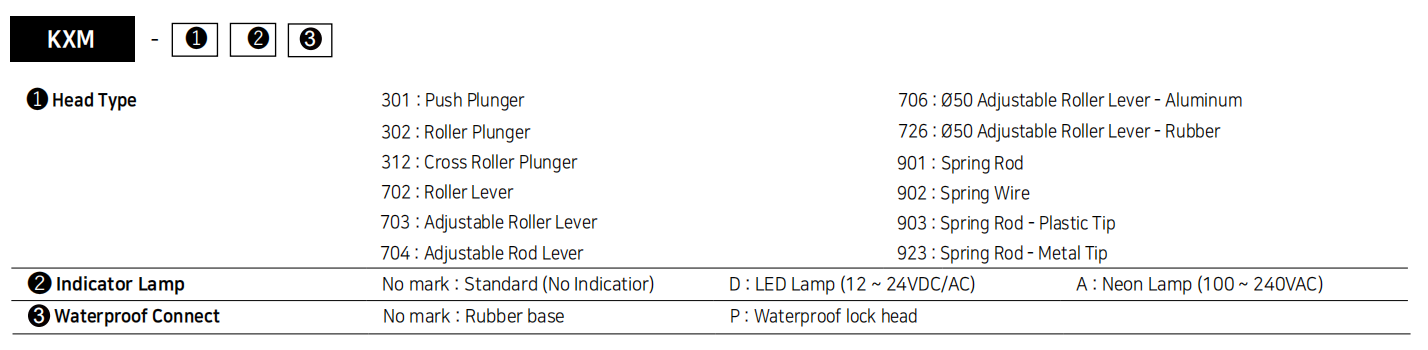

Understand The KXM Model Suffix
Each suffix in the KXM series indicates a specific actuator type. Refer to the illustration below to identify the exact switch configuration you need.
KXM Technical Specifications
| Parameter | Specification |
|---|---|
| Protection Class | IP66 |
| Rated Insulation Voltage (Ui) | 500V AC |
| Rated Operational Voltage (Ue) | 380V AC |
| Rated Thermal Current (Ith) | 10A |
| Rated Operational Current (Ie) | AC-15 3A/380V, DC-13 0.27A/220V |
| Contact Configuration | 1NO + 1NC (Snap Action) / Slow Action Available |
| Contact Material | Silver Alloy with 24K Gold Plated Option |
| Mechanical Life | ≥ 1,000,000 operations |
| Electrical Life | ≥ 500,000 operations |
| Operating Speed | 0.05 m/s ~ 0.5 m/s |
| Operating Frequency | ≤ 30 cycles/min |
| Ambient Temperature | -25℃ ~ +70℃ |
| Ambient Humidity | ≤ 95% RH |
| Housing Material | Zinc Alloy Die-Casting / Reinforced Plastic |
| Cable Entry | M20 × 1.5 / PG13.5 (Optional) |
| Safety Feature | Positive Opening (NC) Mechanism |
| Certifications | CE, ISO 9001 |

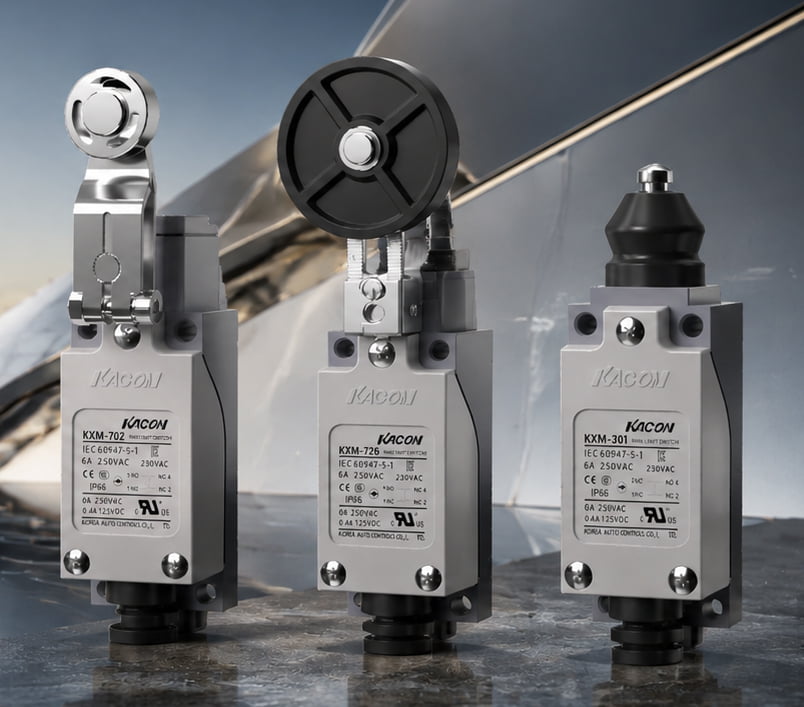

Complete KXM Series Model Lineup
Explore all 12 KXM series models — from roller plunger to lever actuators, tailored for diverse mechanical positioning applications.
Internationally Certified For Global Markets
Our KXM series is fully certified with CE and manufactured under an ISO 9001 quality management system, ensuring compliance with the strictest global industrial standards.
Contact Us Or Explore More Series
Get in touch for wholesale pricing and OEM/ODM services. From initial industrial design, tooling, and global certification to massive-scale production, we deliver factory-level reliability at every step.
