ZXG Limit Switch
Discover the KACON ZXG Series — a compact, IP65-rated general-purpose limit switch built with positive opening (NC) safety mechanism, dual-spring reliability, and 24K gold-plated contacts for stable, long-life performance in industrial automation.

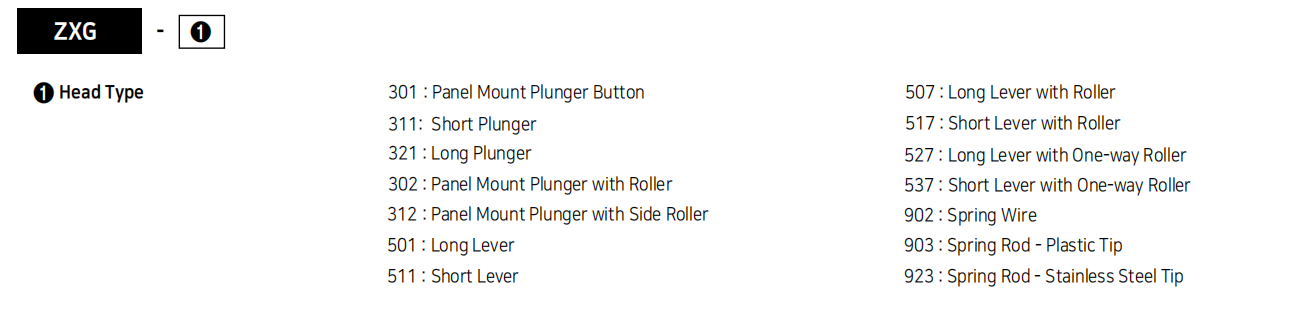

Understand the ZXG Model Suffixes
Each character in the ZXG model code represents a specific actuator type, contact form, or feature. Use the chart below to identify the exact switch that fits your application.
ZXG Series Datasheet
| ZXG Series — Technical Specifications | |
|---|---|
| Rated Insulation Voltage (Ui) | 500V AC |
| Conventional Enclosed Thermal Current (Ith) | 10A |
| Rated Operating Voltage (Ue) / Current (Ie) | AC-15: 240V / 3A, 380V / 2A | DC-13: 250V / 0.27A |
| Rated Impulse Withstand Voltage (Uimp) | 4kV |
| Insulation Resistance | ≥ 100 MΩ (500V DC) |
| Contact Form | 1NO + 1NC (Snap Action / Slow Action) |
| Contact Material | Silver Alloy with 24K Gold Plating |
| Mechanical Life | ≥ 10,000,000 operations |
| Electrical Life | ≥ 500,000 operations |
| Operating Frequency | Mechanical: 120 ops/min | Electrical: 30 ops/min |
| Protection Class | IP65 |
| Ambient Temperature | -25°C to +70°C |
| Ambient Humidity | 35% to 85% RH |
| Housing Material | Fiber-reinforced polyamide (High-strength engineering plastic) |
| Cable Entry | M20 × 1.5 / Pg13.5 |
| Safety Standard | Positive Opening Operation (NC) — IEC/EN 60947-5-1 |
| Certifications | CE, ISO 9001 |

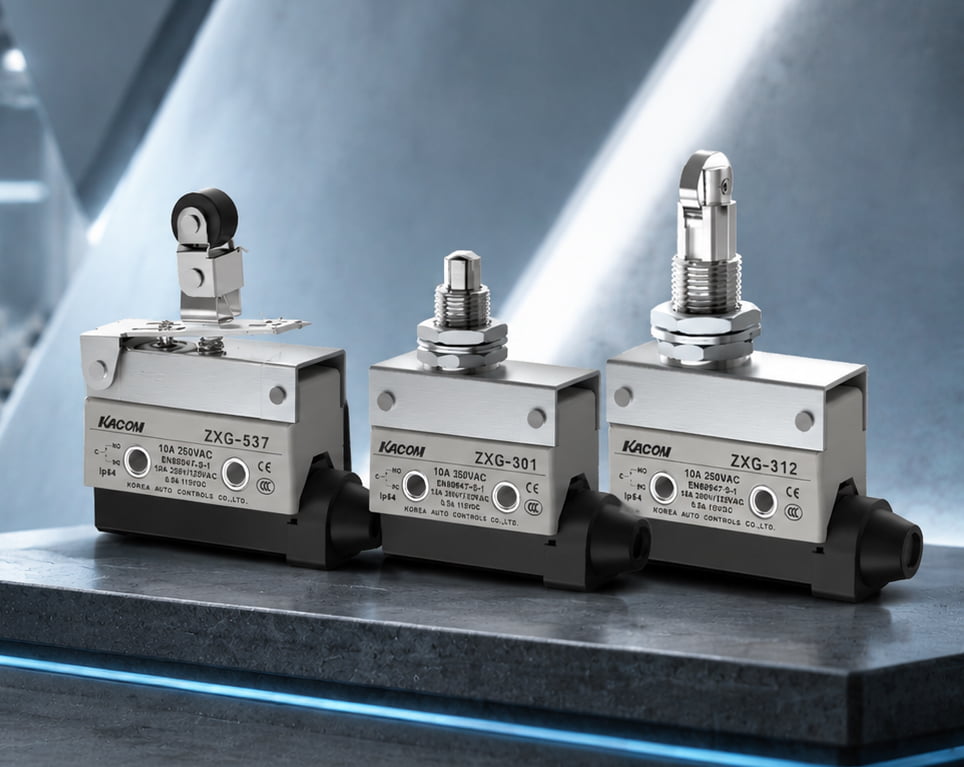

Complete ZXG Series Lineup
14 models covering a wide range of actuator heads — roller lever, plunger, adjustable rod, and more — for versatile industrial applications.
Certified for Quality & Safety
Our ZXG Series limit switches meet international safety and quality standards, giving distributors, importers, and OEM partners complete confidence in every shipment.
CE Certification
European Conformity — ensuring compliance with EU safety, health, and environmental directives.
ISO 9001 Certification
Recognized quality management system covering our factory, production processes, and QC protocols.
