While the Kacon KXL-717 features a standard yoke roller lever and the Omron WLCA32-43 uses a maintained fork-lock lever C, both operate on similar mechanical principles. Always verify mechanical clearance, actuation cam geometry, and electrical load requirements prior to field installation.
Quick Comparison: Kacon KXL-717 vs. Omron WLCA32-43
| Specification | Kacon KXL-717 | Omron WLCA32-43 |
|---|---|---|
| Product Type | Heavy-Duty Industrial Limit Switch | Two-Circuit Heavy-Duty Limit Switch |
| Actuator Type | Yoke Roller Lever | Fork-Lock Lever C (Maintained) |
| Contact Configuration | 1NO + 1NC (SPDT / Snap Action) | 1NO + 1NC (SPDT / Two-Circuit) |
| Rated Current | 12A @ 250VAC (Resistive Load) | Up to 10A (Depending on Voltage/Load) |
| Ingress Protection | IP67 (Dust-tight & Waterproof) | IP67 (Dust-tight & Waterproof) |
| Housing Material | Die-cast Aluminum Alloy | Die-cast Aluminum / Metal Housing |
| Operating Speed | 1 mm/s to 1 m/s | Up to 0.5 m/s (Published Spec) |
| Operating Temperature | -10°C to +80°C | -10°C to +80°C |
| Conduit Entry | G 1/2 Thread | G 1/2 Thread |
| Mounting Footprint | Approx. 68.7 × 40 mm (58.7 mm Pitch) | Approx. 68.7 × 40 mm (58.7 mm Pitch) |
Note: Specifications should always be verified against the latest manufacturer datasheets before final engineering approval.
1. Why Is the KXL-717 Limit Switch Considered an Equivalent Alternative?
The primary reason for cross-referencing these models is their shared mechanical concept. The Omron WLCA32-43 employs a maintained fork-lock roller lever, whereas the Kacon KXL-717 utilizes a yoke roller lever. Both mechanisms are engineered for bi-directional machinery where a moving object contacts a roller actuator to alternate the switch state.

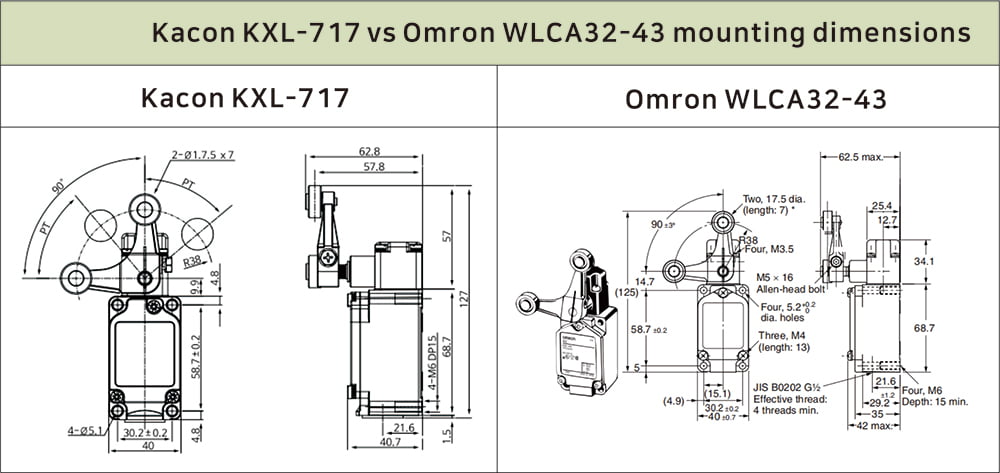

Furthermore, their published envelope dimensions match almost perfectly. Omron documentation specifies a 40 mm body width, 58.7 mm diagonal mounting pitch, and 68.7 mm body height. Kacon KXL series specifications match these exact dimensional baselines, making the KXL-717 an economical, high-availability alternative for plant maintenance teams.
2. Mechanical Compatibility & Dimensions
When replacing a limit switch on an operational line, physical fit is critical. Key mechanical features shared by both models include:
- Body Width: Approximately 40 mm.
- Mounting Pitch: Standard diagonal 58.7 mm spacing.
- Overall Body Height: Approximately 68.7 mm.
- Conduit Compatibility: Standard G1/2 hub entry compliant with NEMA 250 Enclosure Guidelines.
- Mounting Pattern: Standard 4-hole diagonal mounting footprint.
Even with near-identical dimensions, engineers should evaluate lever travel angles, overtravel limits, roller offset, and machine cam clearance during retrofit installation.
3. Electrical Compatibility & Contact Architecture
The Kacon KXL-717 is built with a snap-action 1NO + 1NC (SPDT) double-break contact configuration rated for up to 12A at 250VAC (resistive load). The internal contacts offer exceptional electrical specs:
- Insulation Resistance: Minimum 100 MΩ (at 500VDC).
- Dielectric Strength: 1,000VAC between terminals; 2,200VAC between live parts and non-charging housing.
- Contact Resistance: Maximum 15 mΩ initial. Continuity testing procedures can be reviewed on Fluke Industrial Test Guides.
- Operating Lifespan: Minimum 10 million mechanical cycles; 1 million electrical cycles.
For safety-critical control circuits compliant with IEC 60204-1 Machinery Safety Rules, always verify that actual circuit loads (inrush currents from solenoids, relay coils, or motors) fall within the switch’s operating limits.
4. Industrial IP67 Environmental Protection
Both the Kacon KXL-717 and Omron WLCA32-43 are certified to IP67 protection standards. This ensures total protection against dust ingress and resistance to temporary water submersion.
While IP67 is ideal for general factory washdown zones and dusty material handling plants, applications involving aggressive chemical solvents or high-pressure steam washdowns should adhere to ANSI Industrial Safety Specifications for secondary protective shielding.
5. Key Reasons to Standardize on Kacon KXL-717
- Supply Chain Resilience: Diversifies switch sourcing and eliminates single-vendor downtime risks.
- Cost Optimization: Offers a competitive Bill-of-Materials (BOM) cost structure without sacrificing build quality.
- Drop-in Dimensions: Uses identical 58.7 mm mounting pitch and G1/2 conduit fittings for seamless retrofits.
- Rugged Die-Cast Body: Built with durable aluminum alloy designed for heavy industrial abuse.
- Broad Portfolio Support: Complements a full range of mechanical actuators across the Kacon KXL Limit Switch Series.
6. Typical Industrial Applications
The KXL-717 is widely deployed across automated manufacturing sectors, including:
- Conveyor sorting lines & material handling equipment
- CNC machine tool doors & position indexing
- Packaging & palletizing machinery
- Automated industrial doors & hoisting systems
- Assembly automation & line-limit safety interlocks
7. Step-by-Step Retrofit & Field Installation Checklist
When replacing an Omron WLCA32-43 with a Kacon KXL-717 during maintenance cycles:
- Document Wiring: Label existing COM, NO, and NC contacts before disconnecting the Omron switch.
- Verify Spacing: Measure diagonal mounting hole pitch (58.7 mm) on the equipment frame.
- Align Actuator: Position the yoke roller lever so machine cams trigger the actuator smoothly without mechanical binding. Mechanics research on contact angles can be referenced via the IEEE Xplore Technical Library.
- Check Travel Angles: Confirm pretravel and overtravel clearance during manual machine cycling.
- Seal Cable Entry: Tighten the G1/2 cable gland to maintain IP67 weather-tight integrity.
- Test Electrical Feedback: Verify NO/NC switching continuity and PLC input feedback before powering system motors.
8. Frequently Asked Questions (FAQ)
Can the Kacon KXL-717 directly replace the Omron WLCA32-43?
Yes, in the vast majority of industrial applications. They share identical mounting dimensions, IP67 housing protection, and 1NO+1NC contact ratings. Always confirm physical actuator clearance before commissioning.
Is the KXL-717 considered a 1:1 drop-in replacement?
It is extremely close to a drop-in match in terms of body size and mounting pattern. The main difference is the lever style (Yoke Roller Lever vs. Fork Lock Lever C).
What ingress protection rating does the KXL-717 offer?
The Kacon KXL series features full IP67 dust-tight and waterproof protection.
Does the KXL-717 feature standard NO and NC contacts?
Yes, it features a snap-action 1NO + 1NC (SPDT) double-break contact configuration.
What other actuator options are available in the Kacon KXL family?
The Kacon KXL series includes top plungers, roller plungers, flexible coil springs, adjustable roller levers, rod levers, and yoke roller levers.
