If your conveyor systems, automated sorting lines, or material handling equipment rely on the Omron WLCL to detect passing objects arriving from unpredictable angles, the Kacon KXL-704 delivers identical functional reliability and mechanical interchangeability at optimized lead times and total cost.
1. Omnidirectional Spring Actuator & Mounting Compatibility
The defining mechanical characteristic of both the Omron WLCL and Kacon KXL-704 is the flexible coil spring (rod) execution head. Unlike rigid roller levers or top plungers, the spring rod can be deflected in any direction (360° omnidirectional sweep) by approaching objects, returning automatically to its vertical neutral position upon release.

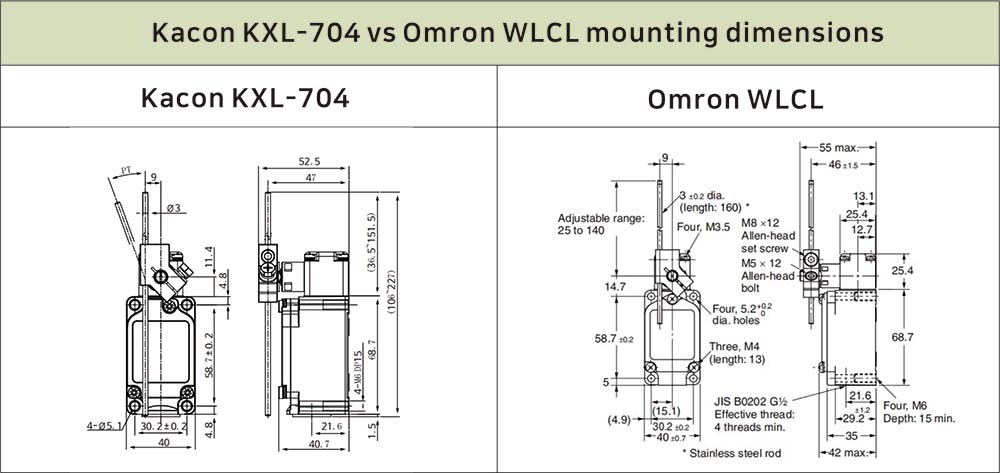

- Mounting Pitch: Identical standard industrial 2-hole diagonal mounting pattern (58.7 mm × 30 mm). Fits existing conveyor frames and machine housings without mechanical adjustments or bracket drilling.
- Actuation Flexibility: Ideal for lightweight or irregular objects where rigid levers might jam or damage conveyed items.
- Conduit Entry Threads: Available in standard conduit hub options including G 1/2, M20 × 1.5, and 1/2-14 NPT, matching existing factory wiring cable glands compliant with NEMA 250 Enclosure Standards.
2. Technical Parameter Specification Matrix
Below is a detailed side-by-side technical comparison between the Kacon KXL-704 and Omron WLCL:
| Parameter / Specification | Omron WLCL | Kacon KXL-704 | Compatibility Verdict |
|---|---|---|---|
| Actuator Style | Flexible Rod / Coil Spring | Flexible Rod / Coil Spring | 1:1 Direct Match |
| Actuation Angle | 360° Omnidirectional | 360° Omnidirectional | 1:1 Direct Match |
| Contact Architecture | 1NO + 1NC (SPDT-DB Snap Action) | 1NO + 1NC (SPDT-DB Snap Action) | 1:1 Direct Match |
| Mounting Pitch | 58.7 mm × 30 mm | 58.7 mm × 30 mm | 1:1 Direct Match |
| Protection Rating | IP67 (Dust-tight & Waterproof) | IP67 (Dust-tight & Waterproof) | 1:1 Direct Match |
| Housing Material | Die-cast Aluminum alloy | Die-cast Aluminum alloy | 1:1 Direct Match |
| Contact Plating | Gold-clad silver contacts | 24K Gold-plated silver alloy | Direct Equivalent |
| Operating Temp Range | -10°C to +80°C | -10°C to +80°C | 1:1 Direct Match |
3. Electrical Reliability & Safety Circuit Integration
Gold-Plated Micro-Load Signal Reliability
In modern logistics lines and automated packaging machinery, limit switch signals are routed directly into 24V DC / 10mA PLC I/O ports. Standard uncoated contacts exposed to factory humidity or oil mist can develop surface oxidation over long idle cycles, causing missing PLC input triggers.
The Kacon KXL-704 features 24K gold-plated silver alloy contacts, preserving low contact resistance over high cycle lifetimes and matching the high signal integrity of the gold-clad Omron WLCL. Contact integrity and continuity testing can be verified using Fluke Industrial Continuity Test Guidelines.
Industrial Safety Standard Compliance
For emergency control loops built according to IEC 60204-1 Safety of Machinery Standards, the internal double-break mechanism of the KXL-704 ensures Normally Closed (NC) contacts break reliably even under machine vibration or mechanical shock.
4. Engineering & Field Replacement Checklist
When replacing an Omron WLCL with a Kacon KXL-704 during routine maintenance or new system builds:
- Deflection Distance Management: While the coil spring allows 360° bending, avoid excessive over-bending near the base fixture to maximize spring fatigue life. Mechanical spring mechanics can be studied through the IEEE Xplore Technical Library.
- Target Contact Point: Position the switch so conveyed items strike the upper two-thirds of the flexible rod for smooth deflection without abrupt impacts.
- Cable Seal Tightness: Tighten the cable gland to standard torque specs to maintain full IP67 ingress protection against washdown fluids and airborne dust, adhering to ANSI Industrial Machinery Regulations.
Conclusion & Actionable Engineering Resources
The Kacon KXL-704 limit switch is a fully functional, dimensionally identical, and electrically reliable equivalent to the Omron WLCL. Transitioning to the KXL-704 empowers plant maintenance teams and OEM machine builders to secure supply chain resilience and lower BOM costs without compromising equipment performance.
Resources & Downloads:
- Download CAD & Datasheets: Access 2D/3D step files and engineering specs on the Kacon KXL Series Product Page.
- Review Machinery Safety Standards: Learn more about global limit switch contact requirements on the IEC Official Standards Portal.
- Request Evaluation Samples: Contact our technical application engineers today for test samples or custom wiring advice.
