1. Mechanical & Lever Arm Interchangeability (Adjustable Length)

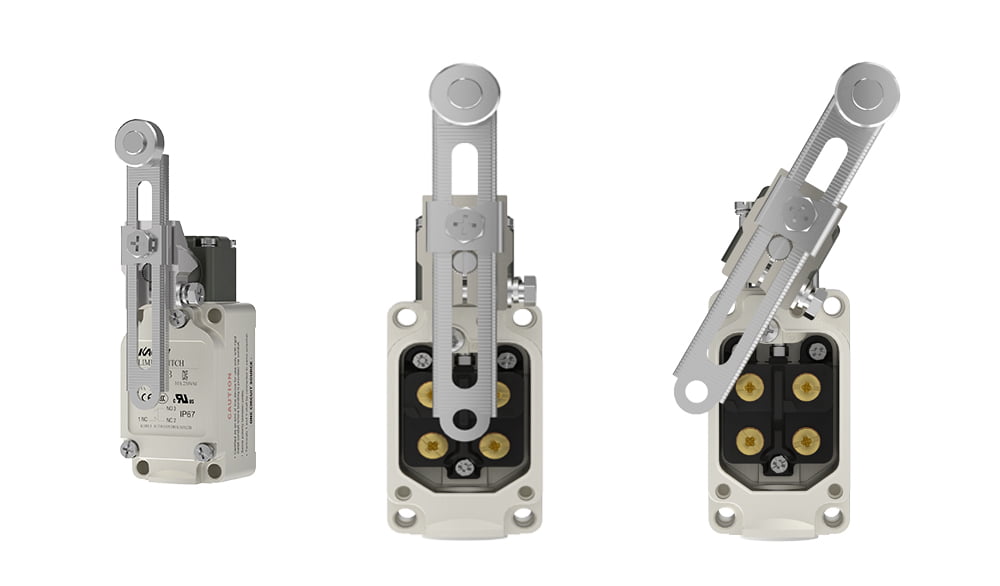

The primary mechanical feature of both the Omron WLCA12 and Kacon KXL-703 is the adjustable stainless steel roller lever. This design allows control engineers to alter the actuation radius without changing the mounting position of the limit switch housing.

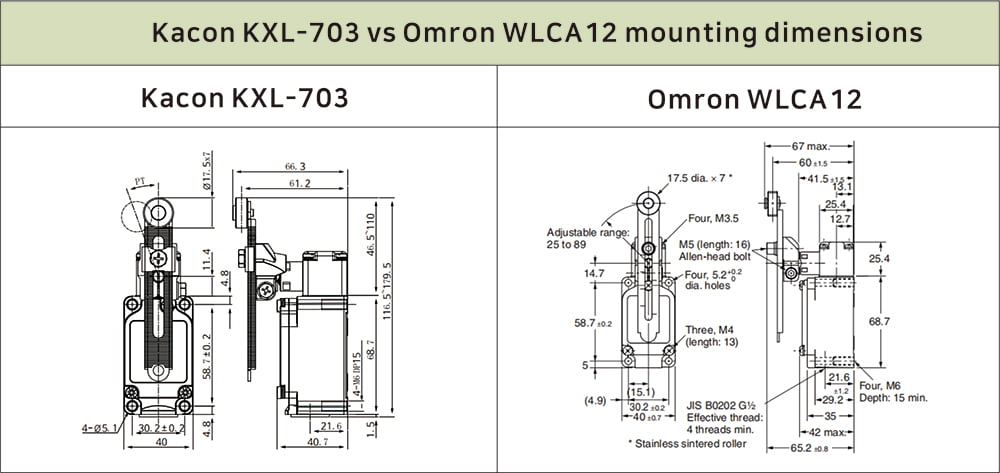

- Mounting Pitch: Uses the industry-standard 2-hole diagonal mounting footprint (58.7 mm × 30 mm), matching existing machine brackets with zero mechanical retrofit needed.
- Arm Length Adjustment Range: The slotted lever mechanism permits continuous adjustment of the roller height, allowing precise cam alignment during commissioning.
- Actuator Head Rotation: The rotary head assembly can be rotated in 4 orthogonal directions (90° increments), supporting clockwise (CW), counter-clockwise (CCW), or dual-direction actuation modes.
- Conduit Entry Threads: Available in standard conduit hub options including G 1/2, M20 × 1.5, and 1/2-14 NPT, matching existing factory wiring setups compliant with NEMA 250 Enclosure Standards.
2. Technical Parameter Specification Matrix
Below is a detailed side-by-side engineering comparison between the Kacon KXL-703 and Omron WLCA12:
| Parameter / Specification | Omron WLCA12 | Kacon KXL-703 | Compatibility Verdict |
|---|---|---|---|
| Actuator Style | Adjustable Roller Lever | Adjustable Roller Lever | 1:1 Direct Match |
| Contact Architecture | 1NO + 1NC (SPDT-DB Snap Action) | 1NO + 1NC (SPDT-DB Snap Action) | 1:1 Direct Match |
| Mounting Pitch | 58.7 mm × 30 mm | 58.7 mm × 30 mm | 1:1 Direct Match |
| Protection Rating | IP67 (Dust-tight & Waterproof) | IP67 (Dust-tight & Waterproof) | 1:1 Direct Match |
| Housing Material | Die-cast Aluminum alloy | Die-cast Aluminum alloy | 1:1 Direct Match |
| Contact Plating | Gold-clad silver contacts | 24K Gold-plated silver alloy | Direct Equivalent |
| Operating Temp Range | -10°C to +80°C | -10°C to +80°C | 1:1 Direct Match |
3. Electrical Reliability & Safety Loop Compatibility
Micro-Load Signal Integrity for PLC Control
In modern factory automation, limit switch feedback signals are typically routed directly to 24V DC / 10mA PLC I/O channels. Uncoated silver contacts in moist or oil-laden environments can experience surface oxidation, leading to intermittent signal losses.
Machine Safety Standards Compliance
For machine safety and interlock circuits built according to IEC 60204-1 Safety of Machinery Standards , the KXL-703 internal double-break switch mechanism guarantees positive disconnection of Normally Closed (NC) contacts during safety circuit interruption.
4. On-Site Installation Checklist for Engineers
When substituting an Omron WLCA12 with a Kacon KXL-703 during machine setup or maintenance:
- Tightening the Lever Locking Screw: After setting the desired lever length, ensure the arm clamp bolt is torqued securely to prevent arm slip under high mechanical shock. Mechanical torque limits can be referenced via the IEEE Xplore Engineering Library.
- Actuation Direction Setting: Verify whether the internal plunger notch is configured for bidirectional (CW+CCW) or single-direction (CW or CCW only) switching prior to mounting.
- Cable Seal Integrity: Ensure standard IP67 cable glands are properly sealed to prevent cutting fluid or condensation from entering the wiring compartment, in compliance with ANSI Industrial Machinery Standards.
Conclusion & Actionable Engineering Resources
The Kacon KXL-703 limit switch is a dimensionally, mechanically, and electrically identical alternative to the Omron WLCA12. Upgrading or replacing with the KXL-703 allows system integrators and maintenance managers to eliminate supply chain bottlenecks and optimize BOM costs without compromising equipment performance.
Resources & Downloads:
- Download CAD Models & Datasheets: Access 2D/3D step files and technical parameters on the Kacon KXL Series Product Page.
- Review Global Safety Standards: Learn more about industrial switch safety contact requirements on the IEC Official Standards Portal.
- Request Evaluation Samples: Contact our technical sales team today for evaluation samples or cross-reference assistance.
