Direct Answer: Yes, the Kacon KXL-702 is a direct drop-in replacement for the Omron WLCA2 limit switch. As two of the most widely specified standard roller lever models in industrial automation, both switches feature identical 58.7 mm × 30 mm diagonal mounting hole pitch, heavy-duty aluminum die-cast housings, IP67 enclosure ratings, and matching 1NO+1NC double-break contact configurations.For conveyor transport systems, machine tool doors, transfer lines, and packaging automation, the Kacon KXL-702 serves as a 1:1 functional alternative to the Omron WLCA2, enabling engineers and procurement managers to optimize BOM costs without compromising operational safety or durability.
Contents Hide
1 1. Mechanical & Lever Mechanism Interchangeability
2 2. Technical Parameter Specification Matrix
3 3. Electrical Reliability & Low-Current Signal Handling
3.1 Gold-Plated Contacts for PLC Digital Inputs
3.2 Safety Interlock Compliance
4 4. Installation & Cam Alignment Best Practices
5 Conclusion & Engineering Assistance
5.1 Resources & Downloads:
6 External Technical References & Standards

1. Mechanical & Lever Mechanism Interchangeability

The Omron WLCA2 and Kacon KXL-702 are rotary roller lever switches activated by swinging cams or moving mechanical parts.

  • Mounting Pitch: Identical standard 2-hole mounting pitch (58.7 mm × 30 mm), requiring no mounting plate modifications or extra adapter plates.
  • Actuator Arm Flexibility: The roller lever head can be adjusted to actuate clockwise (CW), counter-clockwise (CCW), or in both directions. Furthermore, the actuator head assembly can be rotated in 4 directions (90° increments) to accommodate complex machine geometry.
  • Conduit Hub Threads: Offers standard conduit entry sizes including G 1/2, M20 × 1.5, and 1/2-14 NPT, matching existing factory wiring setups compliant with NEMA 250 Enclosure Standards.

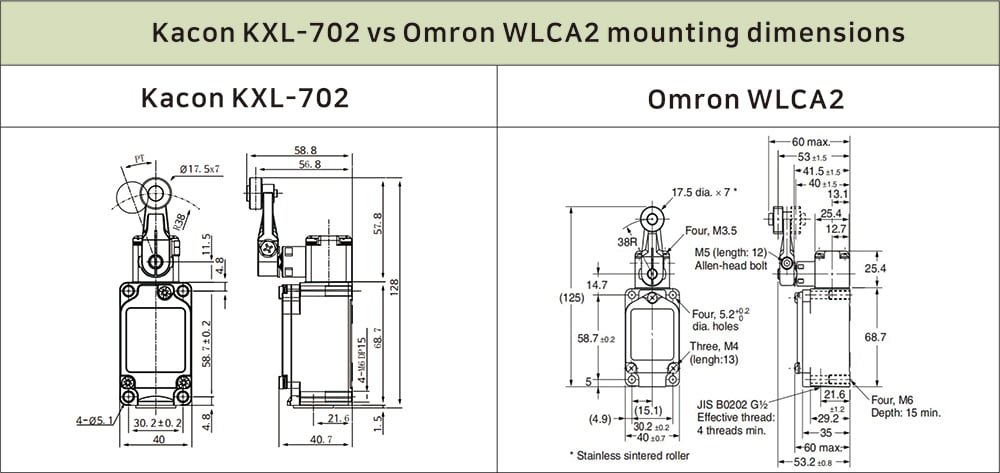

Kacon KXL-702 Replace Omron WLCA2 Limit Switch installation size Kacon KXL-702 vs. Omron WLCA2 mounting pitch (58.7 mm x 30 mm) and roller lever dimensions.

2. Technical Parameter Specification Matrix

Below is a detailed engineering parameter comparison matrix between the Kacon KXL-702 and Omron WLCA2:

Parameter / Specification Omron WLCA2 Kacon KXL-702 Compatibility Verdict
Actuator Type Standard Roller Lever Standard Roller Lever 1:1 Direct Match
Contact Architecture 1NO + 1NC (SPDT-DB Snap Action) 1NO + 1NC (SPDT-DB Snap Action) 1:1 Direct Match
Mounting Pitch 58.7 mm × 30 mm 58.7 mm × 30 mm 1:1 Direct Match
Protection Rating IP67 (Dust-tight / Oil-proof) IP67 (Dust-tight / Oil-proof) 1:1 Direct Match
Enclosure Material Die-cast Aluminum alloy Die-cast Aluminum alloy 1:1 Direct Match
Contact Plating Gold-clad silver contacts 24K Gold-plated silver alloy Direct Equivalent
Operating Temp Range -10°C to +80°C -10°C to +80°C 1:1 Direct Match

3. Electrical Reliability & Low-Current Signal Handling

Gold-Plated Contacts for PLC Digital Inputs

In modern automated production lines, limit switch signals feed directly into 24V DC / 10mA PLC I/O modules. Conventional uncoated contacts can develop surface oxidation during extended standby periods, leading to erratic signal transmission.

The Kacon KXL-702 utilizes silver alloy contacts to maintain low contact resistance and high signal fidelity under low-current PLC input conditions—matching the performance of gold-clad Omron WLCA2 variants. Signal continuity and contact state can be verified using Fluke Continuity Testing Procedures.


Internal exploded view of Kacon limit switch contact block and snap action mechanism
Internal contact architecture of Kacon KXL series featuring double-break safety contacts.

Safety Interlock Compliance

For machinery interlock loops engineered according to IEC 60204-1 Safety of Machinery Standards , the KXL-702 internal double-break switch mechanism guarantees clean, reliable separation of Normally Closed (NC) contacts during safety circuit opening.

4. Installation & Cam Alignment Best Practices

When swapping out an Omron WLCA2 with a Kacon KXL-702 during equipment maintenance or system building:

  1. Lever Operating Angle: Ensure the operating dog or cam depresses the roller lever within the recommended pre-travel (PT) range to avoid over-travel (OT) mechanical stress. Mechanical lever mechanics can be further studied via the IEEE Xplore Engineering Repository.
  2. Directional Switching: Verify whether your application requires bidirectional actuation (CW + CCW) or single-direction actuation (CW or CCW only) and set the internal plunger direction notch accordingly before installation.
  3. Gland Tightening Torque: Maintain proper tightening torque on the cable gland to retain full IP67 ingress protection against cutting fluids and lubricants, following ANSI Industrial Machinery Standards.

Conclusion & Engineering Assistance

The Kacon KXL-702 limit switch is a dimensionally identical, mechanically interchangeable, and electrically equivalent alternative to the Omron WLCA2. Transitioning to the KXL-702 allows machine builders and plant maintenance teams to secure supply chain availability and optimize equipment costs without sacrificing industrial reliability.

Resources & Downloads:

  • Download CAD & Technical Datasheets: Access 2D/3D step models and engineering specs on the Kacon KXL Series Product Page.
  • Learn About Machinery Safety Standards: Review global contact safety requirements on the IEC Official Standards Portal.
  • Request Evaluation Samples: Contact our application engineering team today to receive test samples or custom mounting advice.
