1. Sealed Roller Plunger Mechanism & Mounting Compatibility
The defining engineering characteristic of the Omron WLD3 and Kacon KXL-303 is the Sealed Top Roller Plunger design. Unlike standard open roller plungers, the 303/WLD3 features an internal rubber diaphragm/boot around the plunger shaft beneath the stainless steel roller head to prevent micro-fine chips, metal dust, and cutting fluids from clogging the plunger stem.
- Mounting Pitch: Features the identical standard industrial 2-hole diagonal mounting pattern (58.7 mm × 30 mm). Fits existing machine tool housings and mounting brackets without physical modification.
- Sealed Head Protection: A durable rubber boot structure seals the inner snap-action spring mechanism against grit during high-frequency actuation.
- Rotational Head Flexibility: The plunger head assembly can be rotated in 4 directions at 90° intervals to align seamlessly with lateral cam actuation paths.
- Conduit Threading: Available with standard industrial conduit entry options including G 1/2, M20 × 1.5, and 1/2-14 NPT, fully compliant with NEMA 250 Enclosure Standards.

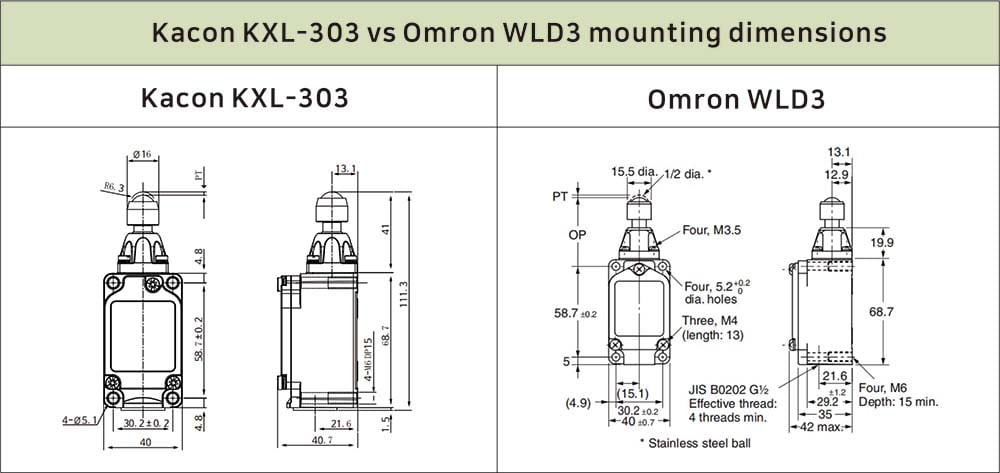

Kacon KXL-303 vs. Omron WLD3 mounting pitch and outer dimension comparison (58.7 mm x 30 mm pitch).2. Technical Parameter Specification Matrix
The following technical comparison matrix highlights the exact performance alignment between the Kacon KXL-303 and Omron WLD3:
| Specification Parameter | Omron WLD3 | Kacon KXL-303 | Compatibility Verdict |
|---|---|---|---|
| Actuator Type | Sealed Top Roller Plunger | Sealed Top Roller Plunger | 1:1 Direct Match |
| Contact Configuration | 1NO + 1NC (SPDT-DB Snap Action) | 1NO + 1NC (SPDT-DB Snap Action) | 1:1 Direct Match |
| Mounting Pitch | 58.7 mm × 30 mm | 58.7 mm × 30 mm | 1:1 Direct Match |
| Protection Rating | IP67 (Oil-proof & Dust-tight) | IP67 (Oil-proof & Dust-tight) | 1:1 Direct Match |
| Enclosure Material | Die-cast Aluminum alloy | Die-cast Aluminum alloy | 1:1 Direct Match |
| Contact Material | Gold-clad silver contacts | 24K Gold-plated silver alloy | Direct Equivalent |
| Operating Temperature | -10°C to +80°C | -10°C to +80°C | 1:1 Direct Match |
3. Electrical Performance & Safety Circuit Integration
Gold-Plated Micro-Load Signal Reliability
Modern CNC machining centers and automated packaging systems route limit switch status signals directly into 24V DC / 10mA PLC inputs. Standard uncoated silver contacts can undergo surface oxidation during extended idle periods, leading to high contact resistance and dropped signals.
The Kacon KXL-303 utilizes 24K gold-plated silver alloy contacts to preserve low contact resistance over high cycle lifetimes, matching the gold-clad electrical integrity of the Omron WLD3. Signal continuity can be verified using standard Fluke Multimeter Continuity Testing Procedures.
Industrial Safety Compliance
For machinery safety control loops built according to IEC 60204-1 Safety of Machinery Standards , the internal forced-break capability of the KXL-303 ensures Normally Closed (NC) contacts break reliably even under harsh vibration or contact welding stress.
4. Engineering & Replacement Checklist
When replacing an Omron WLD3 with a Kacon KXL-303 during routine MRO maintenance or new equipment builds, verify these installation parameters:
- Verify Cam Approach Angle: Ensure the operating dog/cam angle striking the roller plunger does not exceed 30° to 45° to minimize lateral force on the plunger seal. Mechanical force principles can be explored on the IEEE Xplore Engineering Library.
- Stroke Travel Alignment: Confirm that Pre-travel (PT) and Over-travel (OT) tolerances fall within standard mechanical travel limits to prevent bottoming out the plunger housing.
- Cable Gland Tightening: Ensure the IP67-rated cable gland matches the chosen thread type (G 1/2, M20, or NPT) to prevent cutting fluids from penetrating the wiring compartment, adhering to ANSI Industrial Safety Specifications.
Conclusion & Next Steps
The Kacon KXL-303 limit switch is a fully compatible, dimensionally identical, and electrically equivalent replacement for the Omron WLD3. Upgrading or substituting to the KXL-303 gives engineers a high-performance alternative while streamlining OEM production costs and lead times.
Resources & Downloads:
- Download Technical Specifications: Access 2D/3D CAD models and full datasheets on the Kacon KXL Series Product Page.
- Learn About Machine Safety Standards: Review international safety contact compliance requirements on the IEC Official Standards Portal.
- Request Evaluation Samples: Contact our engineering application team today for evaluation test samples or cross-reference assistance.
