Whether you are designing a new CNC machine bed, replacing worn components in automated packaging equipment, or optimizing your factory BOM costs, this technical evaluation proves why the Kacon KXL-302 matches the Omron WLD2 in physical, mechanical, and electrical performance.
1. Mechanical & Actuator Compatibility (Roller Plunger)
Both the Omron WLD2 and Kacon KXL-302 belong to the top roller plunger sub-category. Unlike standard pin plungers, roller plungers absorb side-thrust forces from dog cams, linear slides, or hydraulic cylinders moving laterally across the switch head.
- Mounting Footprint: Built on standard 2-hole diagonal mounting dimensions (58.7 mm × 30 mm), enabling seamless replacement without machine re-drilling.
- Roller Orientation: Features a high-precision stainless steel roller mounted vertically. The head can be re-positioned in 4 directions (90° increments) to align with cam actuation vectors.
- Conduit Entry Thread: Standard threads available include G 1/2, M20 × 1.5, and 1/2-14 NPT, matching existing industrial wiring harnesses and cable glands compliant with NEMA Enclosure Guidelines.
2. Technical Parameter Specification Matrix

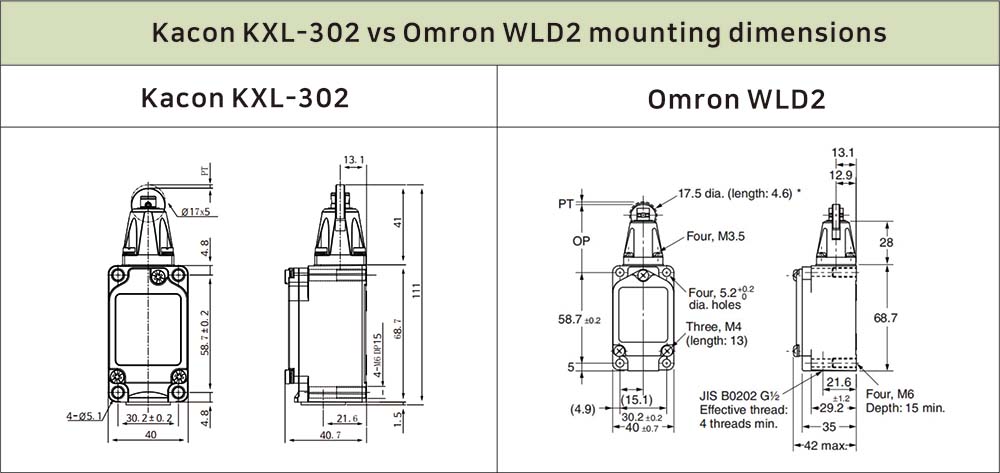

Below is a side-by-side technical comparison between the Kacon KXL-302 and Omron WLD2:
| Specification Parameter | Omron WLD2 | Kacon KXL-302 | Compatibility Verdict |
|---|---|---|---|
| Actuator Type | Roller Plunger (Stainless Steel) | Roller Plunger (Stainless Steel) | 1:1 Direct Match |
| Contact Mechanism | 1NO + 1NC (SPDT-DB Snap Action) | 1NO + 1NC (SPDT-DB Snap Action) | 1:1 Direct Match |
| Mounting Pitch | 58.7 mm × 30 mm | 58.7 mm × 30 mm | 1:1 Direct Match |
| Enclosure Rating | IP67 (Oil-resistant / Waterproof) | IP67 (Oil-resistant / Waterproof) | 1:1 Direct Match |
| Housing Material | Heavy-Duty Die-cast Aluminum | Heavy-Duty Die-cast Aluminum | 1:1 Direct Match |
| Contact Material | Gold-clad silver contacts | 24K Gold-plated silver alloy | Direct Equivalent |
| Operating Temp Range | -10°C to +80°C | -10°C to +80°C | 1:1 Direct Match |
3. Electrical Reliability & Safety Loop Integration
Signal Integrity for PLC Inputs
In modern automated manufacturing systems, limit switches send low-voltage status feedback directly to PLCs or micro-controllers (e.g., 24V DC / 10mA). Standard uncoated silver contacts can suffer from surface oxidation over extended idle periods, leading to erratic signal readings.
The Kacon KXL-302 features 24K gold-plated silver alloy contacts, providing low contact resistance and preventing signal loss under low-current PLC input conditions—matching the gold-clad reliability of the Omron WLD2. Verify contact continuity using established Fluke Continuity Testing Methods.
Machine Safety Standard Compliance
For emergency stops or machine interlock loops, contact opening reliability is critical under safety standards such as IEC 60204-1 Safety of Machinery Standards and ISO 13849-1 Functional Safety Guidelines. The internal forced-break capability of the KXL-302 ensures the Normally Closed (NC) contacts break cleanly even under mechanical shock.
4. Key Installation Considerations
When swapping an Omron WLD2 for a Kacon KXL-302, control system engineers should verify three installation parameters:
- Cam Approach Angle & Cam Speed: Ensure the linear cam angle striking the roller plunger does not exceed 30° to 45° for maximum roller bearing longevity. Circuit principles can be cross-referenced on the IEEE Xplore Digital Library.
- Pre-travel (PT) & Over-travel (OT): The KXL-302 features identical travel dynamics to the WLD2, ensuring accurate trip point repeatability for precise end-of-stroke detection.
- Cable Seal Integrity: Use appropriate IP67-rated cable glands to maintain liquid-tight protection in coolant-heavy CNC environments.
Conclusion & Engineering Resources
The Kacon KXL-302 is a dimensionally, mechanically, and electrically identical alternative to the Omron WLD2 limit switch. Transitioning to Kacon allows machine builders and MRO engineers to reduce procurement lead times and optimize system costs without sacrificing industrial reliability or safety compliance.
Actionable Next Steps:
- Download CAD & Datasheets: Access 2D/3D models and technical specs on the Kacon KXL Series Product Page.
- Review Safety Standards: Read more about international switch contact design requirements on the IEC Official Standards Portal.
- Request Evaluation Samples: Contact our engineering team today to receive test samples or cross-reference assistance for your equipment build.
