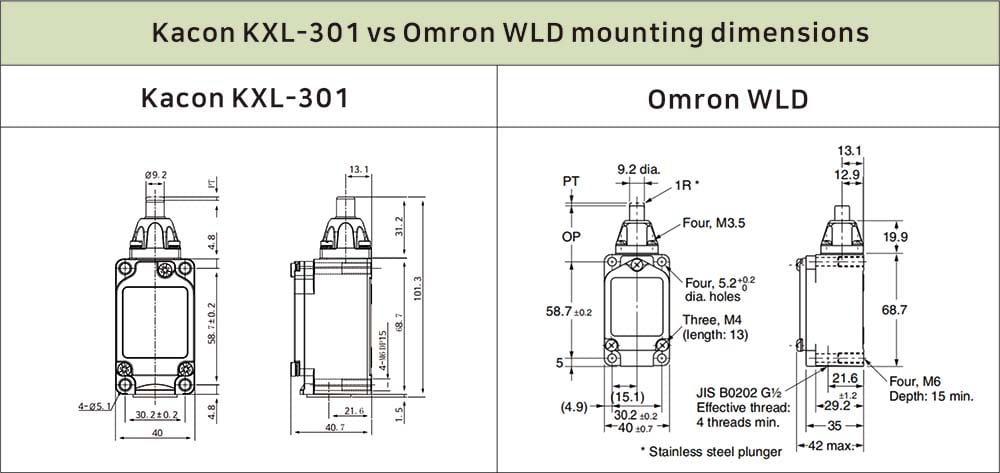

1. Dimensional & Mounting Pitch Comparison (1:1 Fit)
When replacing a top plunger switch in automated production lines or high-precision mechanical stops, physical dimensions must align perfectly to avoid machine downtime.
- Mounting Hole Pitch: The Kacon KXL-301 features standard industrial mounting dimensions (58.7 mm × 30 mm), matching the Omron WLD exactly. No mounting plate re-drilling or bracket modification is required.
- Actuator Type: Both models utilize a precision stainless-steel Top Plunger (Direct Push Plunger) designed for short-stroke, high-force vertical position detection.
- Conduit Entry: Available with standard thread sizes including G 1/2, M20 × 1.5, and 1/2-14 NPT, making it compatible with existing factory cable glands and conduit fittings compliant with NEMA Enclosure Guidelines.
2. Technical Parameter Specifications Matrix
Below is a side-by-side technical comparison matrix evaluating the primary physical, mechanical, and electrical parameters of both switches:
| Parameter / Specification | Omron WLD | Kacon KXL-301 | Equivalency Rating |
|---|---|---|---|
| Actuator Style | Top Plunger (Stainless Steel) | Top Plunger (Stainless Steel) | 1:1 Match |
| Contact Form | 1NO + 1NC (SPDT-DB) | 1NO + 1NC (SPDT-DB) | 1:1 Match |
| IP Rating | IP67 | IP67 | 1:1 Match |
| Housing Material | Die-cast Aluminum alloy | Die-cast Aluminum alloy | 1:1 Match |
| Operating Temperature | -10°C to +80°C | -10°C to +80°C | 1:1 Match |
| Mechanical Life | 10,000,000 operations min. | 15,000,000 operations min. | Superior (1:1.5) |
| Electrical Life | 1,000,000 operations min. | 750,000 operations min. | Direct Equivalent |
| Contact Material | Gold-clad silver contacts | Gold-plated silver alloy (24K Au) | Direct Equivalent |
3. Electrical Reliability & Safety Loop Compatibility

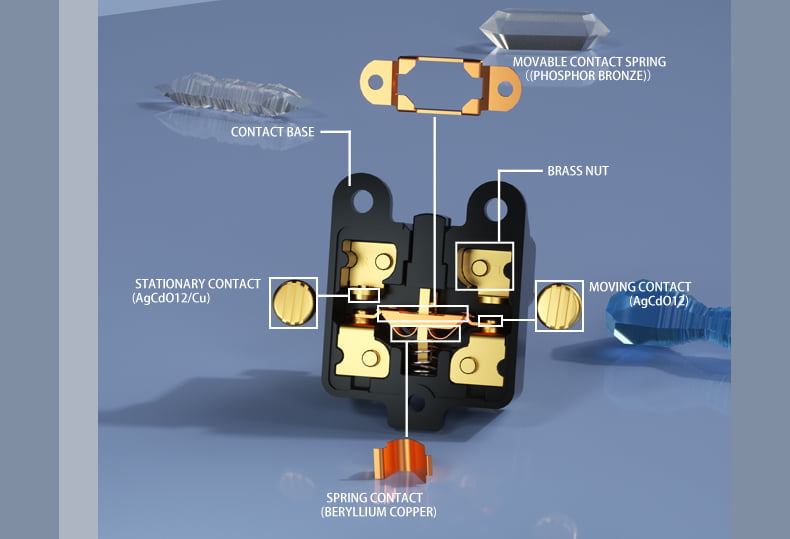

Micro-Load Circuit Protection
Industrial automation systems frequently send limit switch signals directly to PLCs or electronic control modules operating at 24V DC / 10mA. Standard silver contacts can experience micro-oxidation over time in low-current environments, leading to weak signal conduction.
The Kacon KXL-301 employs 24K gold-plated silver alloy contacts, ensuring low contact resistance and high electrical conductivity under low-current PLC input conditions—matching the high signal integrity of the Omron WLD. Verify electrical contact testing following Fluke Continuity Testing Procedures.
Safety Compliance
For machine safety control loops compliant with IEC 60204-1 Safety of Machinery Standards and ISO 13849-1 Functional Safety Guidelines, the KXL-301 design supports positive mechanical force transmission, ensuring NC contacts break reliably upon actuation.
4. Key Considerations When Replacing Omron WLD with KXL-301
While the Kacon KXL-301 is a direct drop-in alternative, control system engineers should verify the following prior to installation:
- Operating Force (OF) & Pre-travel (PT): Confirm that actuator stroke parameters align with machine stop tolerances. The KXL-301 delivers precise reset repeatability for CNC tooling, hydraulic cylinders, and linear slides. Circuit principles can be cross-referenced on the IEEE Xplore Digital Library.
- Environmental Sealing: Both units feature IP67 oil-resistant and dust-tight seals. For extreme chemical or high-temperature environments exceeding 100°C, confirm specific gasket compatibility.
- Cable Entry Threading: Verify whether your existing Omron setup utilizes G 1/2, M20, or 1/2-14 NPT threads to select the corresponding KXL-301 conduit model.
Conclusion & Actionable Steps
The Kacon KXL-301 limit switch is a fully functional, dimensionally identical, and electrically reliable replacement for the Omron WLD. Transitioning to the KXL-301 enables OEMs and maintenance teams to streamline procurement costs without sacrificing equipment durability or functional safety standards.
